Freedom Recovery Gear

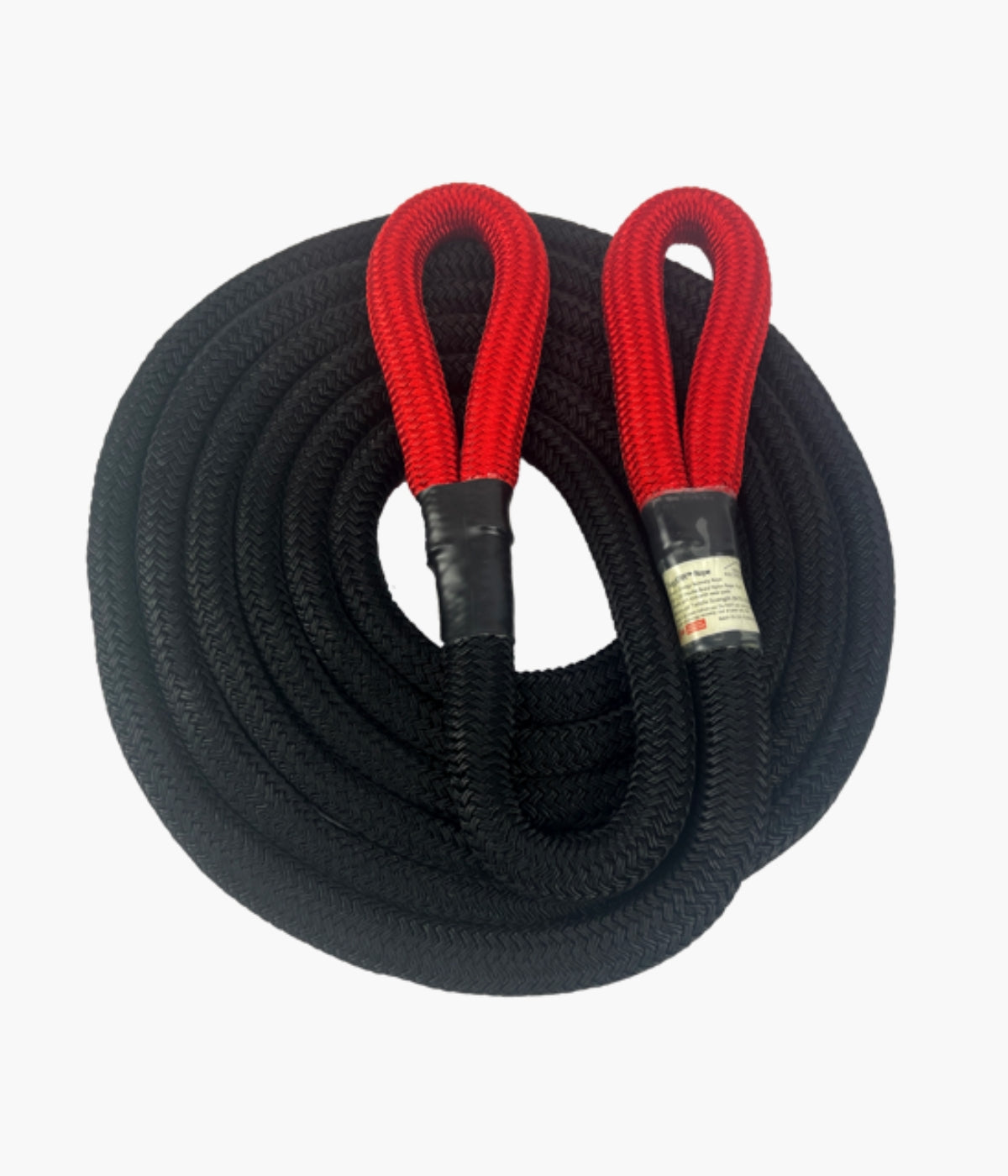

Freedom Recovery - 7/8" TuggeRR Recovery Rope - 25' - MBS 26,200lbs - MTS for use up to GVW 8500lbs.

Freedom Recovery - 7/8" TuggeRR Recovery Rope - 25' - MBS 26,200lbs - MTS for use up to GVW 8500lbs.

SKU:FRG-TUG-78-25

TuggE.R.R.��� Line (Kinetic Energy Recovery Rope)
Jerk-It��� line is a custom spliced double braid manufactured in Canada from 100% nylon yarn. Freedom Recovery Gear K.E.R.R. Kinetic Energy Recovery Rope is an excellent complement to any recovery gear kit, Available in a variety of standard sizes to and lengths

Our K.E.R.R. lines use the kinetic properties of nylon to ���sling-shot��� objects free from mud, sand or snow. Available in a Fire Cracker, this line is a must have for any recreational off-roader as well as the professional dealing with heavy machinery which has become stuck.

Our DBN meets military specification (40-GP 16M Type 1).

Characteristics

High strength
Controlled stretch
Abrasion resistant
Excellent shock absorption
Yellow ID tracer
Applications

K.E.R.R. line
Slings
Tow lines
General utility
Use common sense and ALWAYS KEEP SAFETY THE TOP PRIORITY and ensure your application is verified for proper sizing prior to use. Remember knots in a rope or the use of a nylon rope while it is wet will have a negative impact on the rope���s strength.

CAUTION
��� Avoid abrasive surfaces and any sharp edges.
��� Use shackles of an appropriate strength for the rope and consider switching to soft shackles for increased safety.
��� Always check the splice before and during attachment to each vehicle.
��� Test before use. Try light pulls to test attachment before pulling at maximum force.
��� Keep spectators out of the tow zone.
��� A Bowline knot is recommended if the rope must be knotted. This will undo most easily after use.
*A knot can reduce a rope���s strength by as much as half.*

Application Sizing Suggestions 3:1 Safety Factor

5/8 Max 4000lbs GVW Side by Side UTV MBS 12,200 lbs
3/4 Max 5500lbs GVW Small SUV or crossover 2 door Jeep, 2 door Toyota P/U. MBS 16,500 lbs
7/8 Max 8500Lbs GVW 1/2 ton Truck Jeep Tacoma MBS 26,200 lbs
1 1/8 ��� Max11,500 lbs GVW Sprinter Van, 3/4 ton or 1 ton SRW Pick up MBS 36,000 lbs
1 ����� 14,500lbs GVW 1 ton dually MBS 44,000 lbs
Usage: Crawl, Walk Run������

Crawl: first stage is a simple traction extraction put pressure on the rope and see if the stuck vehicle moves.
Walk: Second stage is a walking pace 2-3 mph that���s actually a lot of force!
Run: Third Stage is a run about 5-6 mph this speed will exert a tremendous amount of force!
Make Sure your attachment point is up to the task and Use only with rated frame mounted recovery points.
Product may look slightly different and colours may vary from images.

MINIMUM BREAKING STRENGTH (MBS) IS THE MINIMUM FORCE NECESSARY TO CAUSE A PIECE OF RECOVERY GEAR TO FAIL.

Working Load Limit (WLL) is the maximum working load designed by the manufacturer. This load represents a force that is much less than that required to make the lifting equipment fail or yield.

=====
