Terrafirma - 14" Bypass Shock - Left

Terrafirma - 14" Bypass Shock - Left

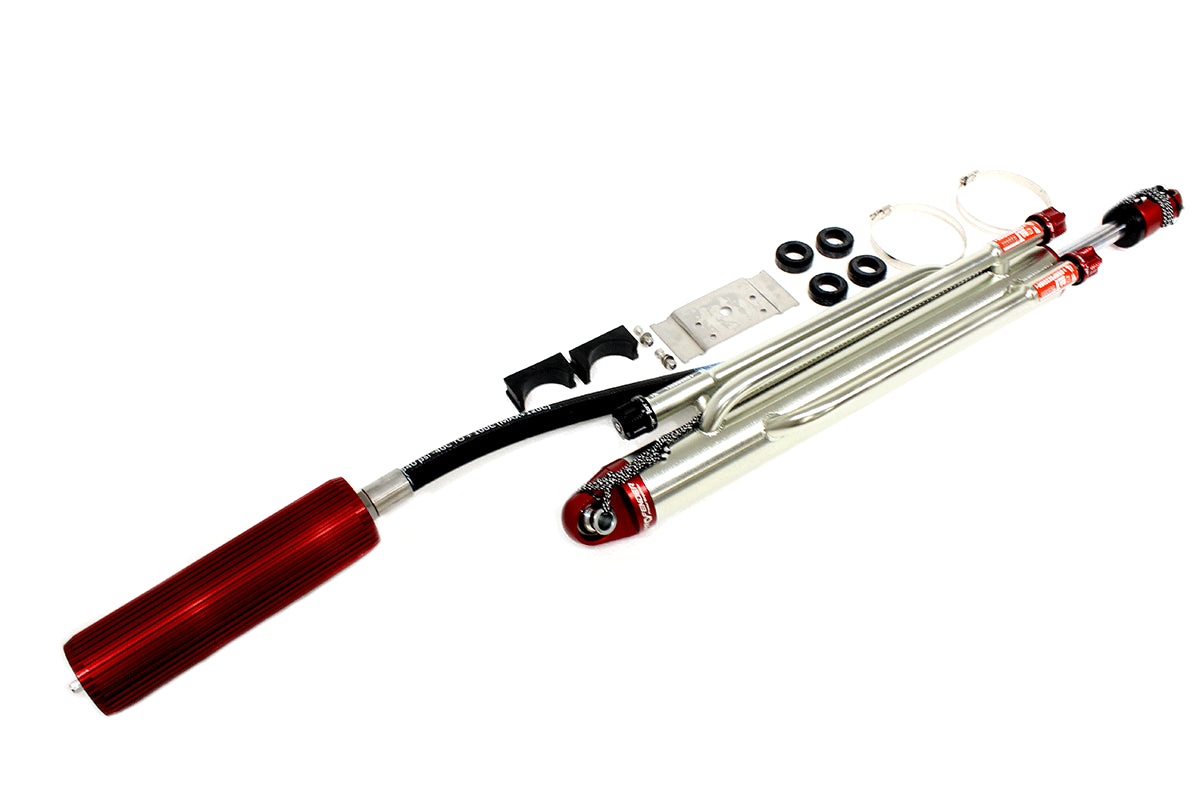

Terrafirma's 2.5" Bypass shock delivers premium damping performance through three external bypass tubes that enable extensive adjustability and fine-tuning capabilities. Two tubes control compression damping while one manages rebound damping, allowing customized suspension response. The shock incorporates a large remote reservoir that maintains cooler operating temperatures during demanding use. Equipped with a Schrader valve in the remote reservoir, the shock permits independent nitrogen pressure adjustment for enhanced tunability. This 14" left-side unit works effectively paired with either a coilover spring carrier or traditional coil spring configurations. For vehicles with 1.5" (38mm) ball joints, Terrafirma Misalignment Spacers can be installed to accommodate the shock's larger spherical bearing, enabling greater articulation while adapting to the smaller 1/2" (12.5mm) diameter bolt standard on certain shock designs. Replacement shaft TFSHAFT14.

Download Install Instructions

=====

Fits Custom

Usually ships in 1-2 weeks
