YRM - Side Frame Fixing Kit - Stainless - Defender Series LWB
YRM - Side Frame Fixing Kit - Stainless - Defender Series LWB
SKU:YRM-1112
You are purchasing a Side Frame Fixing Kit for a Defender & Series 4 or 5 Door
Enough to bolt 1 Side Frame to Body

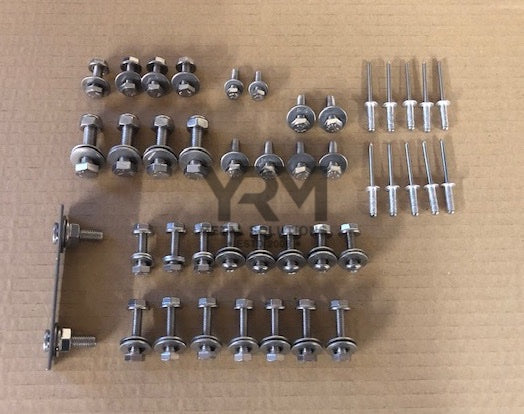

Kits Consists of;
2no M5 A4-80 x 16mm Hex Head Bolts
2no M6 A4 Flat Washers
10no M6 A4-80 x 20mm Hex Head Bolts
3no M6 A4-80 x 25mm Hex Head Bolts
7no M6 A4-80 x 30mm Hex Head Bolts
5no M6 A4-70 x 25mm Soc But Head Bolts
42no M6 A4 Flat Washers
19no M6 A4-80 Flanged Serrated Nuts
4no M8 A4-80 x 30mm Hex Head Bolts
8no M8 A4 Flat Washers
4no M8 A4-80 Nylon Nuts
10no B Rivets
1no Stud plate (YRM product ref YRM052)
You have all the fixing to fit;
-Sill Rail to Bulkhead
-Floor Plate to Sill Rail
-Seat Box End to Sill Rail & B Post
-Kick Panel to B Post
-Mid Cross Member Bracket to Sill Rail
-C Post to Front of Rear Tub
-Rivets for C Post
-Angles for Sill Panel to Sill Rail
=====
Fits DEFENDER 90/110/S2/S3
Ready to ship
